Industrial Liquid Filter And Bag Alkali Filter Chemical Filtration Machine Suitable For Factories
Descriptions of Bag Alkali Filter:
1. It is a machine with multi-function. This series has unique functions, and can choose and replace kinds of filter materials depending on the cutomer's use condition.Industrial liquid filter and bag alkali filter chemical filtration machine suitable for factories.
2. The main body and the base of the filter are made of PP material by intgrated injection molding. So it is with minimum welding point, but with high-temperature resistance & acid and alkali resistance.
3. Filter design, high precision filtering, wide filtration area, high efficiency, simple operation, easy cleaning and small space occupying.
4. We can select PP or acrylic as the filter cartridge material depending on the customer's requirements. The transparent acrylic is applied to the temperature which is lower than 60 degrees.
Parameters of Bag Alkali Filter:
| Model | L | W | H | D |
| CD1 | 420.0 | 380.0 | 1460.0 | 280.0 |
| CD2 | 420.0 | 380.0 | 1750.0 | 280.0 |
| CD3 | 455.0 | 345.0 | 1180.0 | 220.0 |
| CD4 | 455.0 | 345.0 | 1180.0 | 220 |
| Model | Fter Material | Filter Area (m2) | Filter Capacity (I/min) | Temperature ( ≤° C) | Pump POWER (HP) | Diameter (in-out)inch | Weight(kg) |
| CD1 | Φ7×L16" | 0.25 | 240 | 65 | 1-2HP | 1.5"x1.5" | 70 |
| CD2 | Φ7×L32" | 0.50 | 330 | 65 | 3HP | 2"x1.5" | 78 |
| CD3 | Φ4×L19" | 0.09 | 60 | 65 | 1/4HP | 1"x1" | 28 |
| CD4 | Φ4×L15" | 0.16 | 80 | 65 | 1/3HP | 1"x1" | 28 |
Features and benefits of Bag Alkali Filter:
1. Solution will be collected in the bag after the filtration in the filter bag, with the feature of easy to unload and clean.
2. High precision filtration, large filter area, high efficiency easy to operate and clean.
3. Standard specification in market is adopted to the filter bags Bag 1#, Bag 2, Bag 3#, Bag 4, filter bags with filtration fineness of 0.5-50u are provided for clients to select and use.
4. The filter body is made by the injection molding of the Pp material, which is more durable resistant to high temperature and acid and alkaline, without leakage.
5. Standard accessories:foot valve, flange and flange gasket, PVC screws and SUS screws.

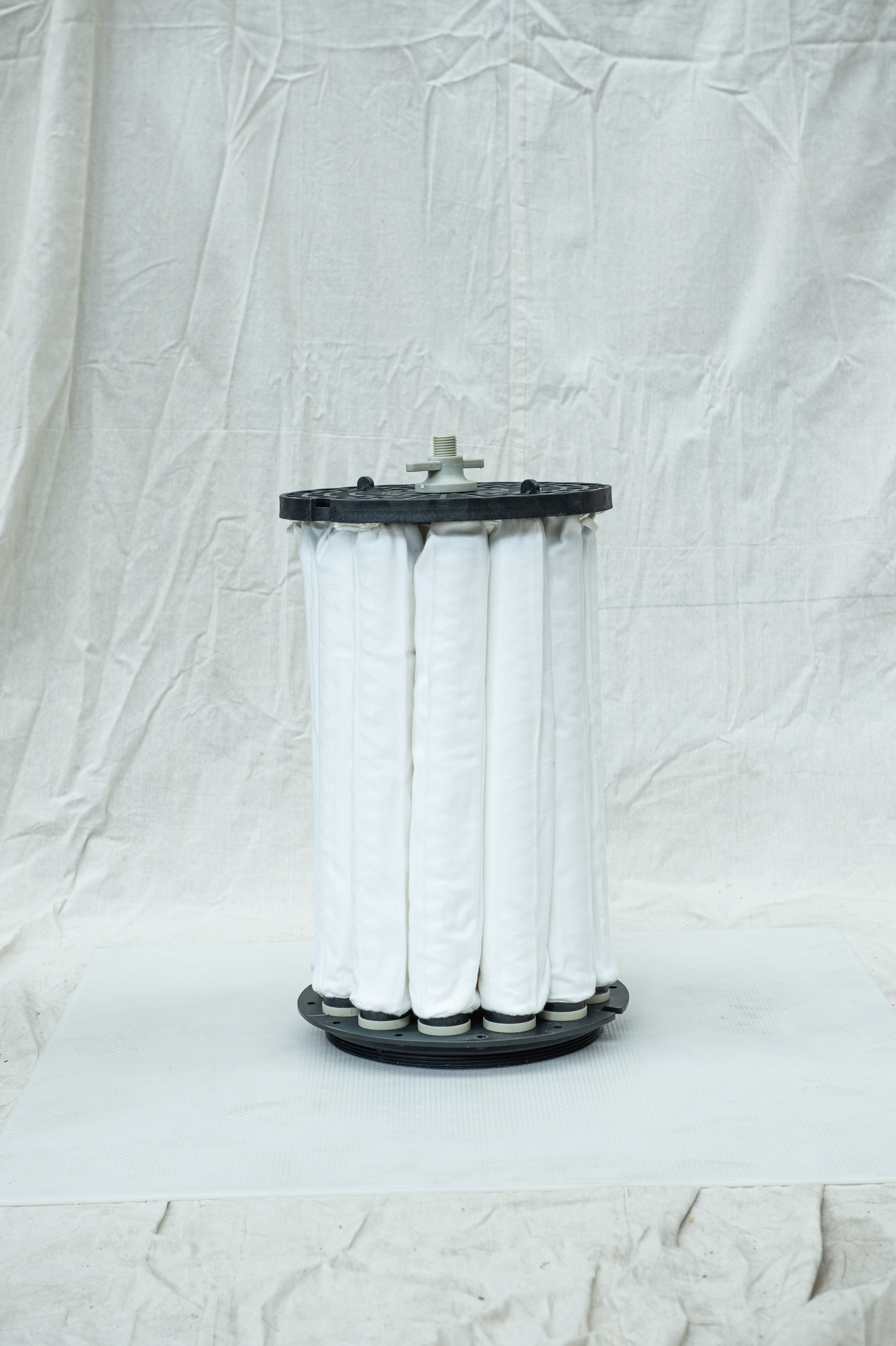

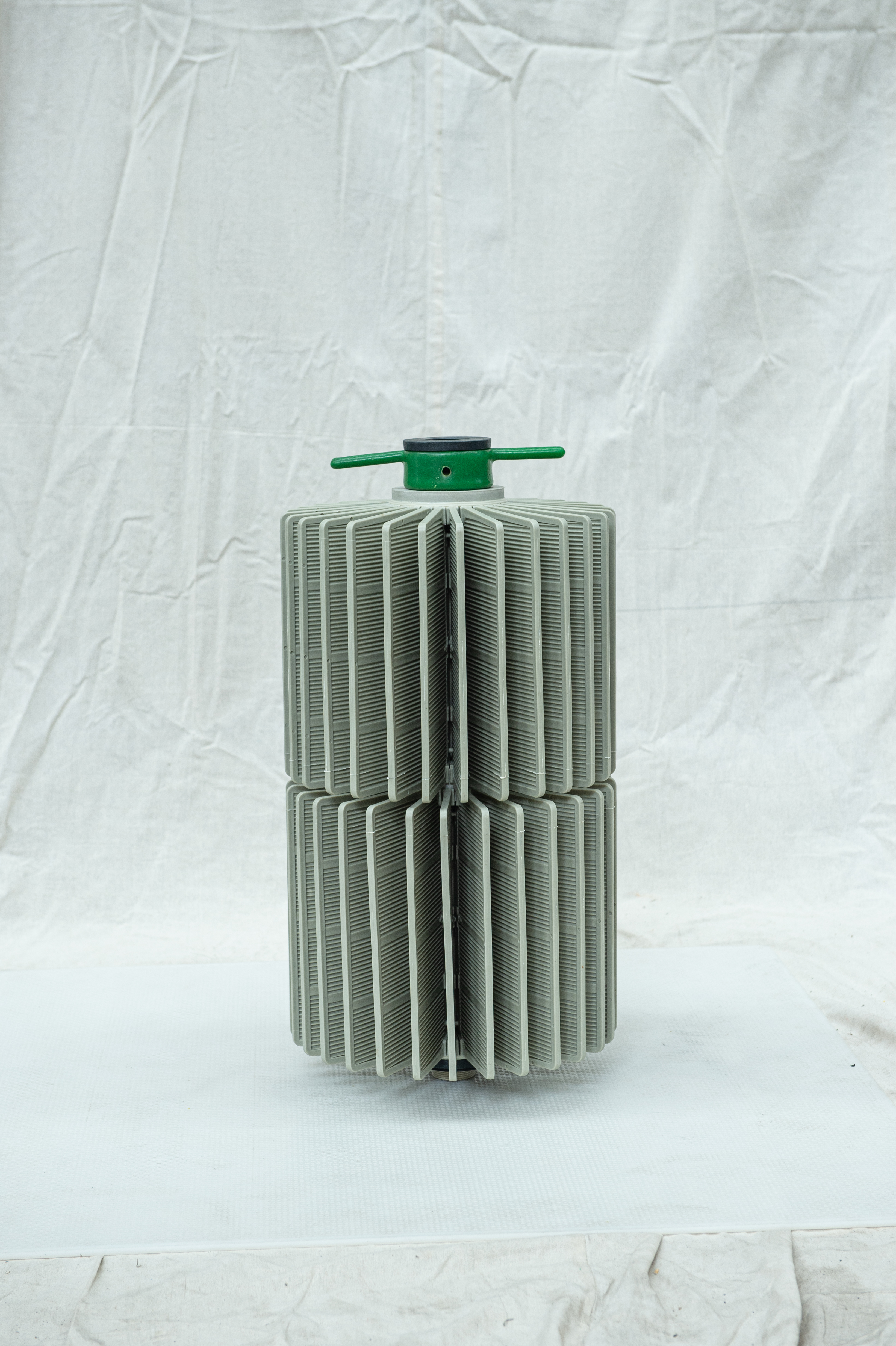

filter media of Bag Alkali Filter:
