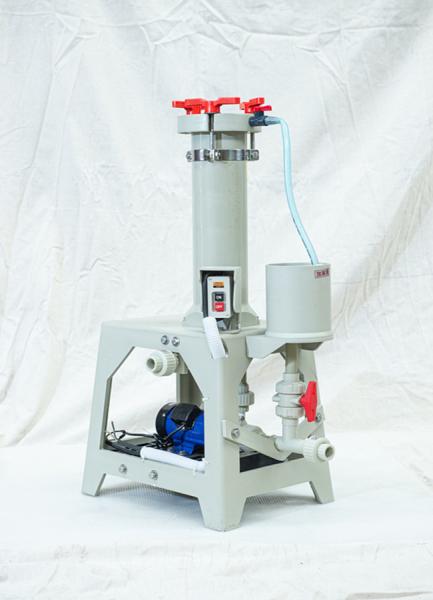

Industrial Liquid Filter And Bag Alkali Filter Chemical Filtration Machine Suitable For Factories
Features Of Industrial Liquid Filter:
1. Chemical liquid circulation filtering, PCB electroplating, chemical, leather, dyeing and finishing, wastewater treatment and other industries.
2. High efficiency, easy to operate and clean.
3. Apply the magnetic drive pump without shaft seal, and there is no worry for the leakage.
4. The filter body is made by the injection molding of the PP material, which is more durable, resistant to high temperature, acid and alkaline, without leakage.
5. The power switch is the on-oFF buckle switch,and the standard accessories are:foot valve outlet and inlet unions.
Parameters of Industrial Liquid Filter:
| Model | L | W | H | D |
| CB1001 | 455.0 | 345.0 | 935.0 | 120.0 |
| CB2001 | 455.0 | 345.0 | 1140.0 | 120.0 |
| CB1002 | 455.0 | 345.0 | 935.0 | 200.0 |
| CB2002 | 455.0 | 345.0 | 1180.0 | 200.0 |
| CB1003 | 455.0 | 345.0 | 935.0 | 200.0 |
| CB2003 | 455.0 | 345.0 | 1180.0 | 200.0 |
| CB1004 | 455.0 | 345.0 | 935.0 | 220.0 |
| CB2004 | 455.0 | 345.0 | 1180.0 | 220.0 |
| Model | Fter Material | Filter Area (I/min) | Filter Capacity (I/min) | Plating Tank Volume(I) | Temperature ( ≤° C) | Pump Diameter POWER(w) (in-out)inch | Weight(kg) |
| CB1001 | 10"x1 | 0.125 | 37.5 | 200.0 | 65 | 65w | 3/4"x3/4" | 16 |
| CB2001 | 20"x1 | 0.25 | 52.0 | 400.0 | 65 | 90w | 1"x1" | 18 |
| CB1002 | 10"x2 | 0.25 | 52.0 | 400.0 | 65 | 90w | 1"x1" | 20.5 |
| CB2002 | 20"x2 | 0.5 | 60.0 | 600.0 | 65 | 180w | 1"x1" | 24.5 |
| CB1003 | 10"x3 | 0.375 | 52.0 | 500.0 | 65 | 90w | 1"x1" | 21 |
| CB2003 | 20"x3 | 0.75 | 60.0 | 700.0 | 65 | 180w | 1"x1" | 25 |
| CB1004 | 10"x4 | 0.5 | 60.0 | 600.0 | 65 | 180w | 1"x1" | 24 |
| CB2004 | 20"x4 | 1 | 80.0 | 800.0 | 65 | 260w | 1"x1" | 28 |
Applications of Industrial Liquid Filter:
1. suitable for all kinds of acid and alkali liquid cooling, spraying and washing equipment, waste gas tower, carving machine, waste water treatment and so on
2. controllable operation, never by air instead of damage
3. dry seal design, can protect the motor to prevent acid gas into the damaged bearing
4. it is suitable for the cyclic transportation of electroless nickel, electroless copper and various s pecial electroplating liquid
5. explosion-proof motor can be used according to the environment.
